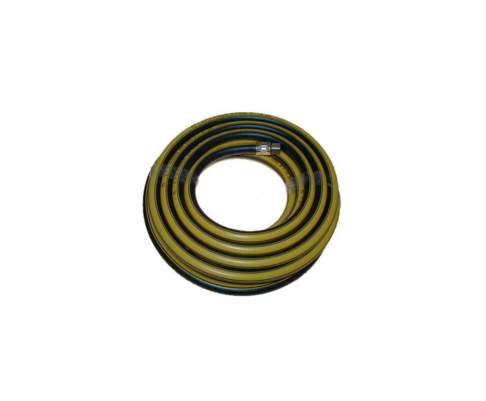

Black/Yellow Air Hose fitted with Nut and Tail ends

Available in I.D. sizes 6.3mm (1/4″), 8mm (5/16″), 10mm (3/8″) and 13mm (1/2″)

Black/Yellow Air Hose fitted with Nut and Tail ends is made from a Rubber PVC Alloy (PTE) compound, it looks and feels like rubber and has many advantages including a longer lifespan due to its abrasion and aging resistance. The ideal air hose for use in Construction, Workshop, Industrial and Garage forecourt applications.

This general purpose air hose is available in I.D. sizes: 6.3mm (1/4″), 8mm (5/6″), 10mm (3/8″) and 12.5mm (1/2″) and in popular cut lengths complete with Swivel End fittings, saving you time and the need for expensive crimping equipment.  Other lengths are available made-to-order, please email our Sales Office for details.

Features & Benefits

• Black air hose with a high visibilty yellow stripe
• Excellent abrasion resistance
• Good flexibility and kink resistant
• Resistance to oil and fuels
• Silicone free
• Working pressure:  21 bar / 300 psi
• Burst pressure: 63 bar / 900 psi (3:1 safety factor)
• Temperature range: -15°C to 60°C
• RoHS 3 compliant
• 6.3mm – 10mm fitted with 1/4″ BSPP swivel ends and 3/8″ BSPP available on 10mm I.D. lengths
• 13mm fitted with 1/2″ BSPP swivel ends
• N.B. an increase in temperature above 20°C will affect the working pressure quoted above

Approvals

Conforms to: ISO 5774:2008 (BS 6066:1981)
Exceeds: BS EN ISO 2398:1997 (BS 5118:1980)
